Introduction
Use this guide to install a Zebra ZD410 label printer and print sticker tickets from ROLLER Point of Sale (POS).
Requirements
- A Zebra ZD410 printer with power supply and USB cable
- Windows 10 or Windows 11 computer with administrator access
- Sticker media loaded in the printer
- ROLLER Connect installed and the POS device signed in
Install the printer and driver in Windows
- Load the sticker roll in the ZD410 and close the cover.
- Power on the printer.
- Connect the printer to the computer by USB. Allow Windows to detect the device.
- Install the Zebra driver using one of the options below:
- If prompted by Windows, choose the ZDesigner driver for Zebra ZD410.
- If you have Zebra Setup Utilities, open it, select Install Printer, choose ZD410, and complete the wizard. This will install the ZDesigner driver.
- Open Settings then Bluetooth & devices then Printers & scanners. Select the Zebra ZD410 entry, choose Printer properties, then select Print Test Page. Confirm the test page prints correctly.
- Calibrate the media so the printer detects the sticker length and black marks:
- In Zebra Setup Utilities, select the ZD410 then Open Printer Tools then select Calibrate Media. The printer will feed a few stickers and stop when calibration is complete.
If Windows installed a “Generic” or non‑Zebra driver, reinstall using Zebra Setup Utilities so you can access all print settings.
Configure products for sticker printing
For each session product you want to print as a sticker ticket:
- Edit the product configuration and scroll to Advanced settings.
- Under Alternate ticket printing, tick This product uses alternate ticket printer.
- Select Save.
Sticker printing is only supported for session passes. Do not enable alternate ticket printing for standard passes. ROLLER Connect will stop working if you try to print a sticker for a standard pass.
Set Windows printing defaults for the sticker printer
- Confirm you can print a Windows test page as in step 1.
- Go to Settings then Bluetooth & devices then Printers & scanners. Turn Allow Windows to manage my default printer off.
- Select your sticker printer entry then choose Printer properties and select Change properties.
- Open the Advanced tab and choose Printing defaults.

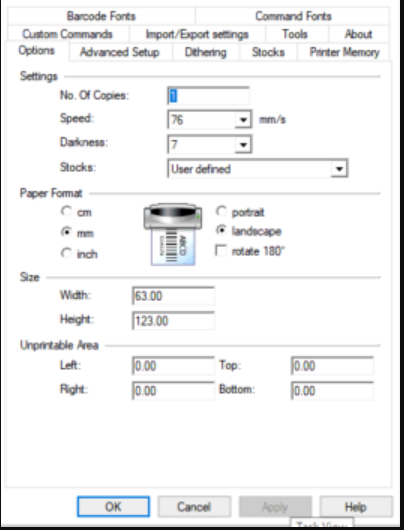

- In the Options tab set:
- Paper format: mm
-

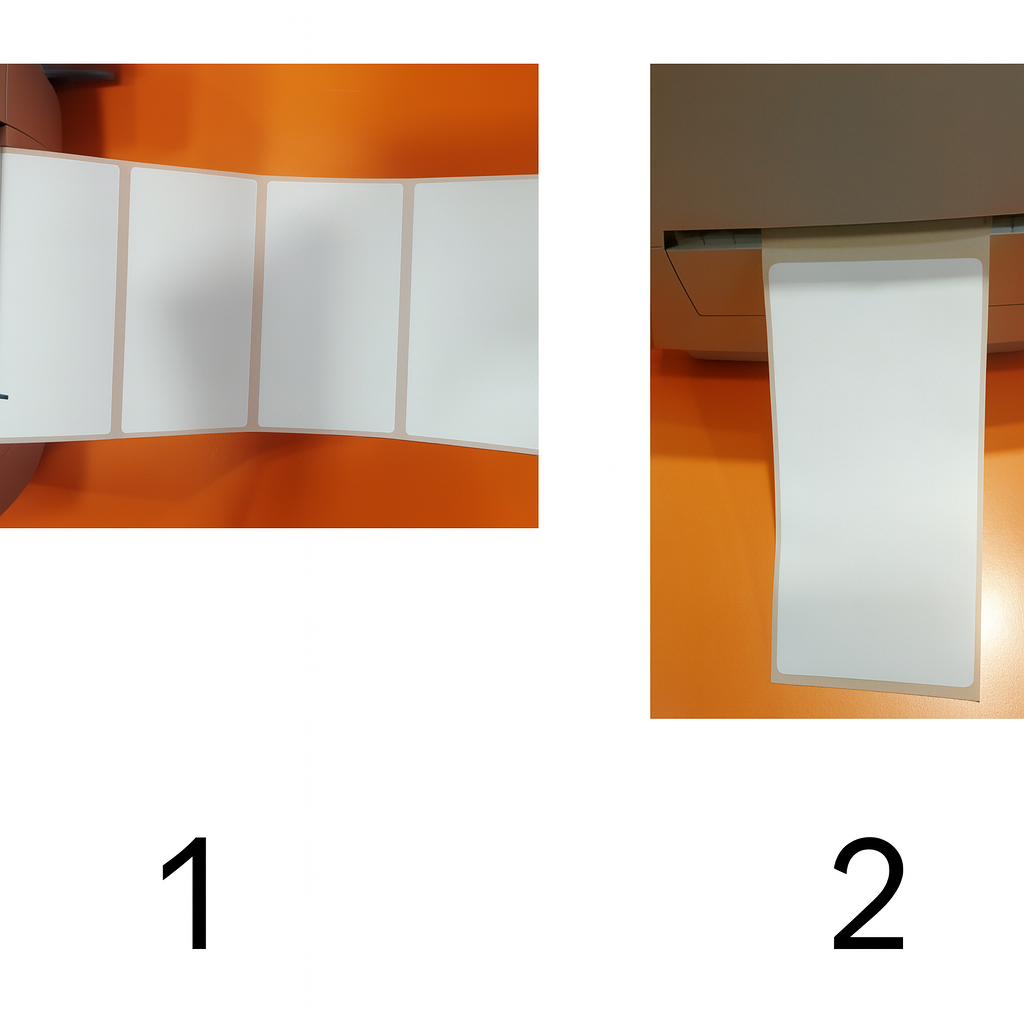

Orientation: Landscape if your stickers match the left image example, Portrait if they match the right image example
- Size: Width 63 and Length 123
- Settings: Speed 76 mm/s, Darkness 7
-
Stock: User defined

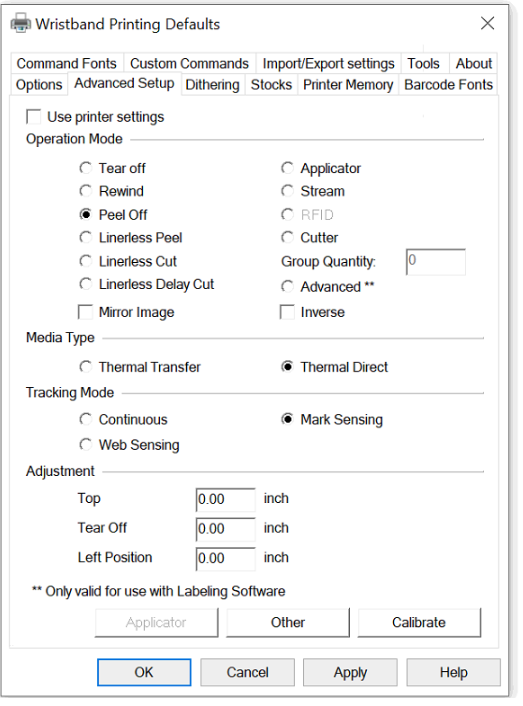

- Select Apply, then open the Advanced setup tab and set:
- Media type: Thermal direct
-
Tracking mode: Mark sensing
- Select Apply again and close the dialogs.
- From the Printers & scanners screen, select Printing preferences for the sticker printer. Confirm the values match the defaults you set. If they do not match, update the preferences to match the defaults, then Save.
Test print a sticker
- Create a complimentary booking for a session product that is set to use the alternate ticket printer.
- Attach a waiver to the booking.
- Select the printer icon to print a sticker.
- Confirm the sticker prints correctly and margins are aligned.
