Get started with POS capacity view

Prev Next

POS capacity view gives your staff a real‑time schedule of bookings across your venue’s resources directly in POS. It helps your team spot availability, place guests faster and keep operations smooth during busy periods.

POS capacity view is available to all staff roles except Dashboard. To reschedule with drag and drop or end a session early, staff need the Can reschedule POS bookings permission.

POS capacity view shows your venue’s single-booking resources (eg bowling lanes and party rooms) and, if you add them, your multi-booking shared resources (eg a trampoline area). You can see capacity for the whole venue in one place. Rescheduling with drag and drop applies to single-resource bookings.

Access POS capacity view

From the POS home screen, select Capacity from the menu on the left. The view opens to the current day’s schedule.

What you see in POS capacity view

The view shows your venue’s daily schedule, organized by:

  • Time (across the top)

  • Resources (along the left)

  • Bookings (as tiles in the grid)

  • Booking information panel (pops out from the right side when a booking is selected)

  • Booking waitlist (an hourglass icon in the top right)

If you’ve added multi-booking resources, capacity view has two sections, one for single-booking resources and one for multi-booking resources. Select the arrow next to a section heading to collapse or expand it.

A red line marks the current time. Sticky headers keep resource names in view as you scroll. Any statuses applied to the booking (eg ‘Ready’) show the tile as a different color (see Flag booking status as ready to start in this guide to learn more).

The day's view can show bookings until 3 a.m. the following day, ideal for venues operating after midnight. Any bookings after midnight also appear on the next day’s schedule.

The ability to select a spot and create a booking directly from POS capacity view is a feature that’s currently available by request. If your venue uses POS capacity view frequently to serve guests, this might be a helpful feature to switch on. If you wish to use this feature in your venue, talk to your customer success manager or the support team.

Tile colors and status indicators

Capacity view has helpful visual indicators to get a read on bookings status at a glance:

Booking state

Color / indicator

Upcoming / default booking

Blue

Party booking

Pink + icon

Ready to start

Purple + icon

Past booking

Gray

In progress (for Conqueror-integrated bowling only)

Green

Slow play (for Conqueror-integrated bowling only)

Yellow

In Display settings, you can show multi-booking resources as a bar chart instead. Turn on Show multi-booking resources as bar chart.

Open a booking from POS capacity view

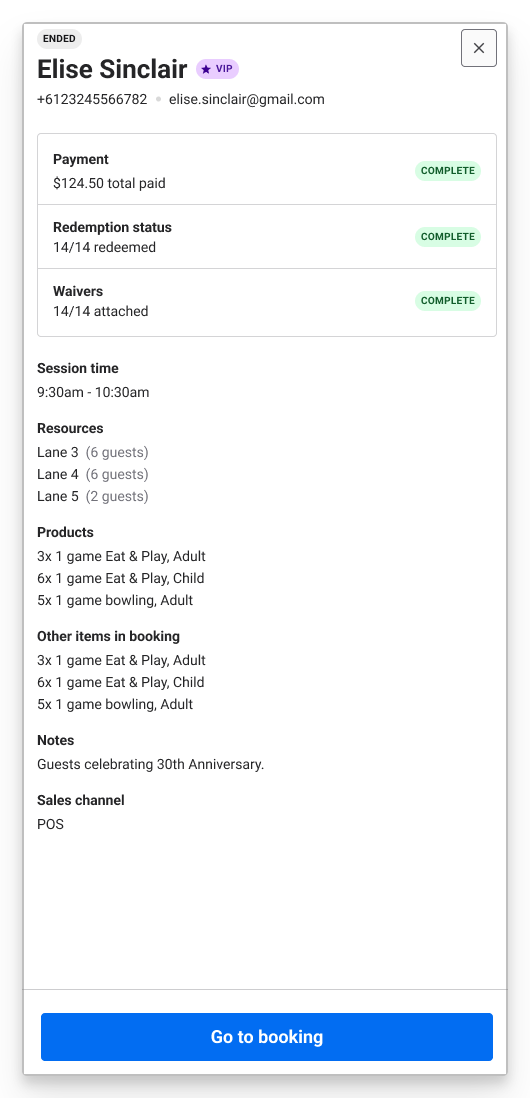

To see a booking's details and tickets, select the booking tile. This pops out the booking panel to the side which shows timely information relevant to POS staff serving guests. To go to the full booking details in POS, select Go to booking.

Compact and expanded view

Use the Display mode drop-down at the top of capacity view to change how much fits on screen:

  • Standard shows more detail on each tile.

  • Compact fits more resources on screen.

  • Fit to screen adjusts the row height so your resources fit on one screen. This is the default.

Zoom and gridline controls

Use the controls at the top of capacity view to change what you see on the grid:

  • Zoom in and Zoom out (the + and - buttons) change how much of the day fits on screen.

  • Grid line interval sets the time spacing of the vertical gridlines. Choose 5, 10, 15, 30 or 60 minutes.

If your sessions are hourly, choose 60 minutes. The grid then shows one line each hour.

Zoom and grid line interval are separate settings. You can zoom out to see more of the day and still keep fine gridlines (eg 5 minutes) to spot gaps.

Reschedule a booking with drag and drop

Use drag and drop to reschedule bookings across eligible resources and times in POS.

You can only reschedule a booking that meets all of these conditions:

  • It’s a single-resource booking.

  • The booking appears as one tile in capacity view (not split across multiple tiles).

  • It is not part of a party or package.

  • The session hasn’t started yet.

  • The new time and resource are both available.

  • The move doesn’t overlap with other bookings or cross into another day.

Select and drag the booking to its new time and/or resource. As you move the tile around the view, the new booking time will appear in a blue header.

If a booking doesn’t meet all of the conditions above, POS shows an error and won’t move the tile. Check the booking’s details and try another time or resource.

End a session early

When a session finishes before its scheduled end time, you can end the booking early from capacity view to free up capacity. The resource(s) will become available for the next booking straight away, meaning you can sell the next session sooner to maximize capacity utilization.

The End session button appears 10 minutes after a session starts and this action ends the whole booking, not individual resources within it. So if a booking is split over multiple resources, ending the session ends all active resources for that booking.

To end a session early, turn on Allow end session in POS settings in Venue Manager (Apps > Point of Sale > Settings, in the Booking management section).

To end a session early:

  1. Select an active session that's been running for at least 10 minutes

  2. Select End session and Confirm. This ends all resources allocated in the booking.

Flag booking status as ready to start

When guests are ready to start their booking, they're often sent to the resource (eg. bowling lane) ahead of time to wait for the active guests to finish.

To flag the booking as ready, use the Ready to start toggle which changes the tile color to purple and syncs across all POS terminals. This flags to staff that this booking shouldn't be changed.

To set a guest or group of guests as ready to start:

  1. From POS, go to Capacity View.

  2. Hover over the booking and select the toggle to switch the booking to Ready to start. This changes the tile color to purple to show the status change at a glance.

POS capacity view.png

Add a guest to the booking waitlist

Add a guest to the waitlist and convert them to a booking when there’s space available. This list syncs across all POS devices at the venue.

Learn more in the guide Keep a booking waitlist for guests.

Customize how resources show in POS capacity view

To help your staff find bookings faster, edit the POS template in Venue Manager to choose which resources to show and arrange them in the order that works best for your operations. You can show single-booking resources, multi-booking shared resources or both. Showing both gives you an idea of capacity for the whole venue.

Changes you make to the template sync to all POS devices using that template.

  1. Go to Apps > Point of Sale > Templates in Venue Manager.

  2. Select the relevant POS template.

  3. Select Unlock to edit, then Yes, edit template.

  4. Select the Capacity view tab and make sure Enable capacity view is on.

  5. Under Multi-booking resources, use the drop-down to select the multi-booking resources you want to see.

  6. Under Single-booking resources, use the drop-down to select the single-booking resources you want to see.

  7. Under Resource order for each type, drag and drop to reorder them.

  8. Select Save.

To change one device only, go to Apps > Point of Sale, select the options menu (3 dots) next to the device, then select Edit. Select Unlock to edit, then follow steps 4 to 8.

Switch POS capacity view off on devices

If your venue prefers not to have POS capacity view displayed on POS devices, you have the option to switch it off. To do this:

  1. Go to Apps > Point of Sale. Next to the device you want to switch off capacity view for, select the options menu (3 dots).

  2. Select Edit.

  3. Select the capacity view tab along the left.

  4. Toggle off Enable capacity view.

FAQs

Does capacity view update automatically?

Yes. The schedule updates in real time as bookings change and guests check in.

Can I change which resources appear and their order?

Yes. In Venue Manager, update your POS template to choose which resources show in capacity view and reorder them. Changes sync to all POS devices using that template.

Why can’t I drag a tile?

The staff member’s role may not have the Can reschedule POS bookings permission. The booking may also use more than one resource, be part of a party or package, have already started or the new time or resource isn’t available.

Can I create a booking from the capacity view screen?

The ability to select a spot and create a booking directly from POS capacity view is a feature that’s currently available on request. If your venue uses POS capacity view frequently to serve guests, this might be a helpful feature to switch on. If you wish to use this feature in your venue, talk to your customer success manager or the support team.
